SINGLE OPEN END SPANNERS

STL No. 129

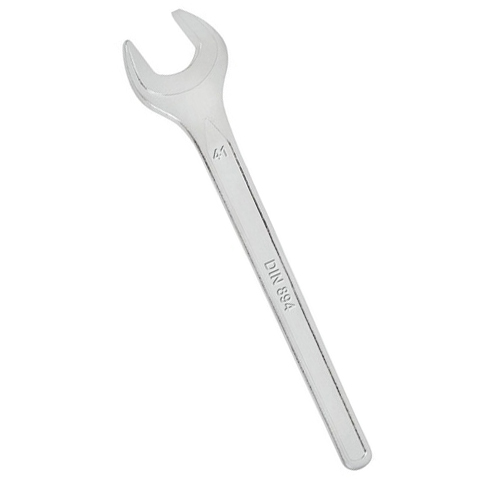

Single Open End Spanner

Owing to our expertise in this domain, we are providing Single Open End Spanner. Our provided spanner is well designed with advance techniques using well-tested material in total compliance with set industry norms. This spanner is provided in numerous specifications as per the need of customers. Our spanner undergoes on stringent test that is performed by our quality experts.

Drop forged from carbon steel

Fully hardened & tempered

Chrome plated/zinc plated/black phosphate finish

Finish: Crome / Zinc

Size (mm)	Net wt. In gms.	Length (mm)	Qty. / Ctn. (pcs.)	Net Wt. / Ctn. (kgs)	Gr. Wt. (kgs)
6	10	75	2000	20.00	21.50
7	11	78	2000	22.00	23.50
8	16	95	1400	22.40	23.90
9	23	105	900	20.70	22.20
10	23	105	900	20.70	22.20
11	23	111	900	20.70	22.20
12	32	125	700	22.40	23.90
13	35	125	600	21.00	22.50
14	46	140	500	23.00	24.50
15	50	142	500	25.00	26.50
16	55	157	400	22.00	23.50
17	65	160	300	19.50	21.00
18	65	160	300	19.50	21.00
19	82	170	300	24.60	26.10
20	80	170	300	24.00	25.50
21	120	195	150	18.00	19.50
22	125	195	150	18.75	20.25
24	155	215	150	23.25	24.75
25	155	215	150	23.25	24.75
27	200	240	120	24.00	25.50
30	270	260	80	21.60	23.10
32	305	275	80	24.40	25.90
34	310	275	80	24.80	26.30
36	425	300	50	21.25	22.75
38	445	305	50	22.25	23.75
41	615	340	40	24.60	26.10
46	755	375	30	22.65	24.15
50	1085	405	20	21.70	23.20
55	1280	450	16	20.48	21.98
60	1522	475	12	18.26	19.76
65	1800	515	12	21.60	23.10
70	2205	560	10	22.05	23.55
75	3180	600	8	25.44	26.94
80	3930	670	6	23.58	25.08
85	3980	680	6	23.88	25.38
90	3700	680	6	22.20	23.70
95	5800	847	4	23.20	24.70
100	5500	847	4	22.00	23.50
105	7450	1000	2	14.90	16.40
110	7400	1000	2	14.80	16.30
115	7300	1000	2	14.60	16.10
120	7250	1000	2	14.50	16.00
125	7200	1000	2	14.40	15.90
130	7150	1000	2	14.30	15.80
135	7100	1000	2	14.20	15.70
