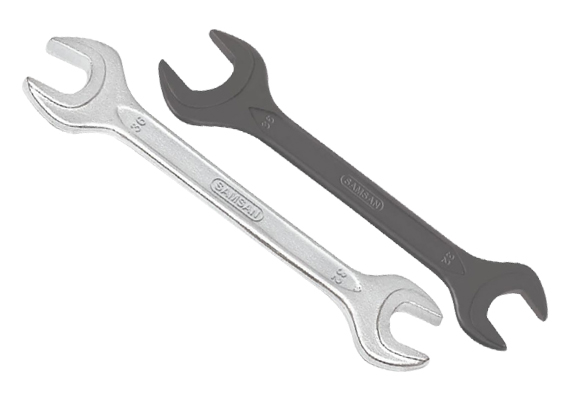

JUMBO DOUBLE OPEN END JAW SPANNERS

STL No. 133

Available in both finish
Dully Hardened & Tempered. Heavy Duty

Size (mm)	Size (inch)	Net wt. In gms.	Length (mm)	Qty. / Ctn. (pcs.)	Net Wt. / Ctn. (kgs)	Gr. Wt. (kgs)
5.5 X 7	--	14	96	1500	21.00	22.50
6 X 7	--	15	96	1500	22.50	24.00
7X8	--	16	107	1500	24.00	25.50
8X9	--	20	110	1000	20.00	21.50
8X10	--	23	115	1000	23.00	24.50
9X11	--	23	118	1000	23.00	24.50
10X11	--	25	118	800	20.00	21.50
10X12	--	32	121	700	22.40	23.90
10X13	--	32	122	700	22.40	23.90
11X13	--	40	133	500	20.00	21.50
12X13	--	44	142	500	22.00	23.50
12X14	--	46	142	500	23.00	24.50
13X14	--	46	140	500	23.00	24.50
13X15	--	55	145	500	27.50	29.00
13X17	--	71	155	400	28.40	29.90
14X15	--	60	145	300	18.00	19.50
14X17	--	72	155	400	28.80	30.30
16X17	--	71	155	300	21.30	22.80
16X18	--	77	165	300	23.10	24.60
17X19	--	102	170	300	30.60	32.10
17X22	--	139	185	200	27.80	29.30
18X19	--	108	170	150	16.20	17.70
19X22	--	143	198	120	17.16	18.66
20X22	--	179	207	120	21.48	22.98
21X23	--	157	198	150	23.55	25.05
22X24	--	203	218	100	20.30	21.80
24X26	--	186	218	120	22.32	23.82
24X27	--	255	240	80	20.40	21.90
24X30	--	255	240	80	20.40	21.90
25X28	--	343	265	60	20.58	22.08
27X30	--	253	240	80	20.24	21.74
27X32	--	330	270	60	19.80	21.30
30X32	--	385	272	60	23.10	24.60
30X34	--	396	275	60	23.76	25.26
30X36	--	469	285	50	23.45	24.95
32X36	3/4 X 7/8	582	300	40	23.28	24.78
34X38	--	582	300	40	23.28	24.78
36X41	7/8 X 1	547	300	30	16.41	17.91
41X46	1 X 1 1/18	780	340	20	15.60	17.10
46X50	1 1/8X1 1/4, 1 1/8X1 3/8	1.034	385	16	16.54	18.04
50X55	1 1/4 X 1 3/8	1.245	420	12	14.94	16.44
55X60	1 3/8 X 1 1/2	1.75	465	12	21.00	22.50
60X65	--	1.86	500	8	14.88	16.38
65X70	--	2.6	580	8	20.80	22.30
75X80	--	4.1	662	6	24.60	26.10
