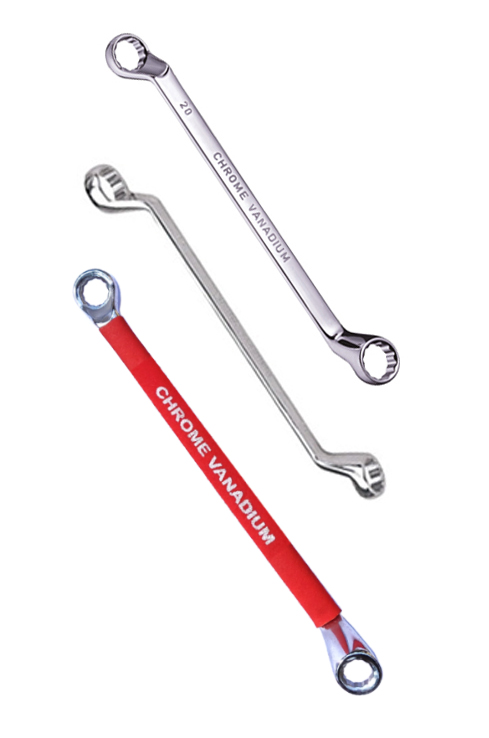

ELLIPTICAL RING SPANNERS
STL No. 102, 105, 108 & 111 (DIN 3110)
Bi-Hexagonal Ring Spanner Elliptical Type
Drop forged from high quality Chrome Vanadium Steel
Induction Heat treated
| Size (mm) |
Size (inch) |
Net wt. In gms. |
Length (mm) |
Qty. / Ctn. (pcs.) |
Net Wt. / Ctn. (kgs) |
Gr. Wt. (kgs) |
|---|---|---|---|---|---|---|
| 6x7 | -- | 50 | 183 | 400 | 20 | 21.5 |
| 8x9 | -- | 70 | 192 | 300 | 21 | 22.5 |
| 10x11 | -- | 92 | 202 | 250 | 23 | 24.5 |
| 12x13 | -- | 125 | 217 | 200 | 25 | 26.5 |
| 14x15 | -- | 150 | 233 | 150 | 22.5 | 24 |
| 16x17 | -- | 170 | 251 | 100 | 17 | 18.5 |
| 18x19 | -- | 210 | 268 | 100 | 21 | 22.5 |
| 20x22 | -- | 305 | 296 | 60 | 18.3 | 19.8 |
| 21x23 | -- | 325 | 322 | 60 | 19.5 | 21 |
| 24x27 | -- | 395 | 330 | 40 | 15.8 | 17.3 |
| 25x28 | -- | 425 | 345 | 40 | 17 | 18.5 |
| 30x32 | -- | 560 | 370 | 30 | 16.8 | 18.3 |
METRIC SIZE
| Size (mm) |
Size (inch) |
Net wt. In gms. |
Length (mm) |
Qty. / Ctn. (pcs.) |
Net Wt. / Ctn. (kgs) |
Gr. Wt. (kgs) |
|---|---|---|---|---|---|---|
| 6 | 6x7, 8x9, 10x11, 12x13, 14x15, 16x17. | 655 | -- | 30 | 19.65 | 21.15 |
| 8 | 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22. | 1170 | -- | 20 | 23.4 | 24.9 |
| 12 | 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 | 2875 | -- | 8 | 23 | 24.5 |
