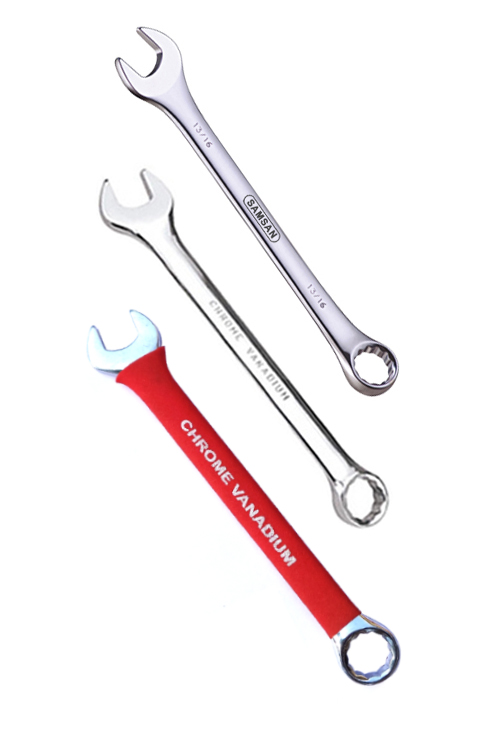

ELLIPTICAL COMBINATION SPANNERS

STL No. 103, 106, 109 & 112(DIN 3110)

Size (mm)	Size (inch)	Net wt. In gms.	Length (mm)	Qty. / Ctn. (pcs.)	Net Wt. / Ctn. (kgs)	Gr. Wt. (kgs)
6	1/4	18	100	1000	18	19.5
7	--	22	110	1000	22	23.5
8	5/6	26	120	1000	26	27.5
9	--	30	130	800	24	25.5
10	3/8	42	140	600	25.2	26.7
11	7/16	52	150	400	20.8	22.3
12	--	60	160	400	24	25.5
13	½	72	170	300	21.6	23.1
14	9/16	86	180	250	21.5	23
15	--	92	190	200	18.4	19.9
16	5/8	109	200	200	21.8	23.3
17	11/16	132	210	200	26.4	27.9
18	--	152	220	150	22.8	24.3
19	3/4	160	230	125	20	21.5
20	--	182	240	125	22.75	24.25
21	13/16	192	250	100	19.2	20.7
22	7/8	210	260	100	21	22.5
23	--	250	270	80	20	21.5
24	15/16	260	280	80	20.8	22.3
25	1"	300	290	60	18	19.5
26	--	320	300	60	19.2	20.7
27	1.1/16	390	310	60	23.4	24.9
28	1.1/8	435	320	40	17.4	18.9
29	--	435	330	40	17.4	18.9
30	--	460	340	40	18.4	19.9
32	1.1/4	560	360	40	22.4	23.9

METRIC SIZE

Size (mm)	Size (inch)	Net wt. In gms.	Length (mm)	Qty. / Ctn. (pcs.)	Net Wt. / Ctn. (kgs)	Gr. Wt. (kgs)
5	8,10,12,14,17	346	--	60	20.76	22.26
6	8,10,12,13, 14,17	418	--	60	25.08	26.58
8	6, 7,8,9,10,14,17,19	516	--	40	20.64	22.14
8	8,9,10,11,13,14,17,19	600	--	40	24	25.5
12	6-14, 17, 19, 22	910	--	20	18.2	19.7
25	6-28, 30, 32	4612	--	4	18.45	19.95
26	6-30, 32	5047	--	4	20.19	21.69
